Products & AVN
Every Automate product is engineered to meet rigorous OEM automotive specifications, integrating hardware, software, acoustics, and vehicle CAN-BUS communications.
Automate Industries designs, engineers, and assembles automotive-grade infotainment and acoustic hardware built specifically to endure harsh environmental and electrical conditions.
Product Lines & Engineering Solutions
1. Audio Video Navigation (AVN) & Display Audio
Linux and Android Automotive OS head units ranging from 7-inch to 14-inch Full HD capacitive touchscreens. Features include wireless Apple CarPlay, Android Auto, CAN-BUS telemetry integration, and multi-camera 360-degree panoramic view monitor (PVM) processing.
2. OEM Acoustic Transducers & Speakers
Automotive door and dashboard speakers engineered for thermal stability, high moisture tolerance, and linear acoustic dispersion. Supplied directly to Toyota, Suzuki, and Hyundai assembly lines.
3. Reverse Cameras & Wiring Harnesses
IP68 waterproof automotive-grade CCD/CMOS reverse cameras and custom braided wiring harnesses with OEM lock connectors.
Featured Products & AVN Systems
Continuous OEM-grade automotive innovations with integrated CAN-BUS, optics, and cabin acoustics.
AVN Infotainment
Surround Vision
Acoustic Audio
Digital Cockpit
AVN Infotainment
DA-2 → DA-3 Architectural Comparison
| Technical Feature | DA-2 Platform (Legacy Tier-1) | DA-3 Next-Gen Platform (25CY Proposed) |
|---|---|---|

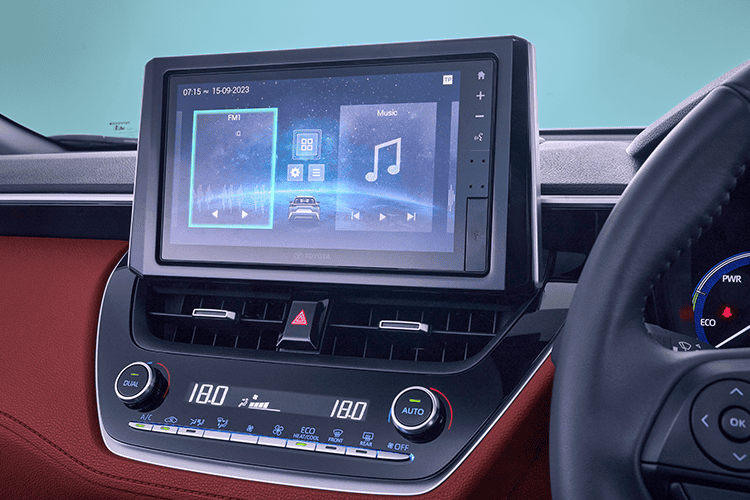

| Display Size | 7" / 9" WXGA Display | 14" / 12.9" Full HD Floating Display |
| Resolution & Clarity | 1280 × 720 (HD) | 1920 × 1080 (Full HD Native) |
| Touch Panel Technology | Standard Capacitive Glass | Capacitive + Optical Clear Adhesive (OCA) Anti-Glare Bonding |
| Smartphone Integration | Wired Apple CarPlay & Android Auto | Wired & Wireless Apple CarPlay & Android Auto |
| Screen Mirroring | Basic USB Mirroring | Miracast for Android (Open device support, no whitelist) |
| Bluetooth Standard | Standard Bluetooth 4.2 | Bluetooth 5.0 (Faster pairing, extended range, lower power) |
| USB Power & Charging | Type-A 2.1A & Type-C 3.0A | Integrated USB Type-C Fast Charging Protocol |
| Camera Input Signal | NTSC & TVI (Analog Composite) | NTSC / TVI + High-Speed Digital GVIF Option |

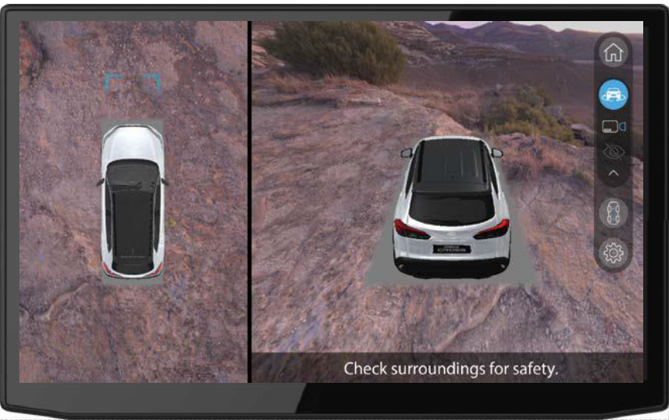

| Panoramic View Monitor (PVM) | Analog, UART serial control | Digital GVIF Full HD 360° Surround Camera Engine |
| PVM Dynamic Guidelines | Rear guidelines only | Front & Rear Dynamic Steering Angle Guidelines |
| Special PVM Off-Road Modes | — | Off-Road Pitch/Roll, Underground View, Moving Object Detect (MOD) |
| Deep Vehicle CAN-BUS Sync | Basic steering controls | Live Fuel, Air-Con Climate, TPMS Tire Pressure, Door Status, Speed Alert |
| Industrial Fascia Design | Standard fixed bezel fascia | 18mm Super-Slim, Buttonless, Floating Vehicle-Harmonized Fascia |
AVN Infotainment Head Units
Automate engineers Linux and Android-based multimedia head units with multi-format media playback, dual camera inputs, GPS navigation, and certified Apple CarPlay/Android Auto. Currently deployed across Toyota Fortuner, Hilux Revo GRS, Suzuki Vitara, and KIA Picanto.
- • Toyota Fortuner Legender: Panasonic DA-3 Infotainment.
- • Toyota Hilux Revo GRS: Panasonic 9" / Android 9" with SIM 4G connectivity.
- • KIA Picanto Automatic: Automate MP5 Touchscreen with HD playback.

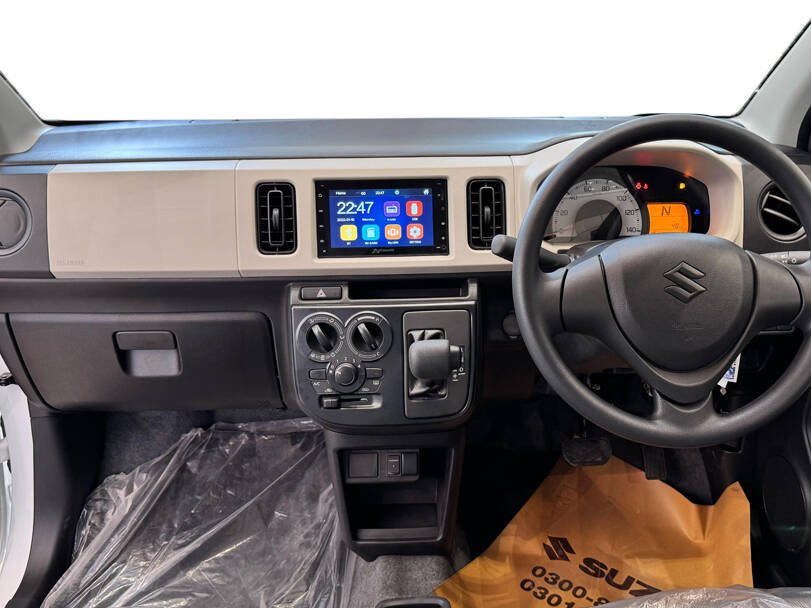

- • Suzuki Small Cars: Alto touchscreen AVN and classical single-DIN units.
OEM Automotive Acoustic Speakers
Automate designs and locally assembles automotive door speakers, tweeters, and full-range cones with customized basket geometries, weather-resistant cones, and vibration dampening tuned to specific vehicle cabin volumes.
- • Hyundai Tucson & Elantra: Component speakers in all 4 doors.
- • Suzuki Cultus: Award-winning VA-VE speaker line (500,000+ units delivered).

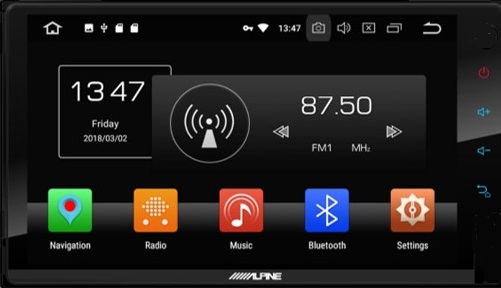

- • Toyota Corolla (XLi/GLi/Altis): 1.6 & 1.8 2-way and full-range speakers (400,000+ units).
- • Commercial Fleet: Isuzu NPR, Master Foton, and FAW Carrier speakers.
